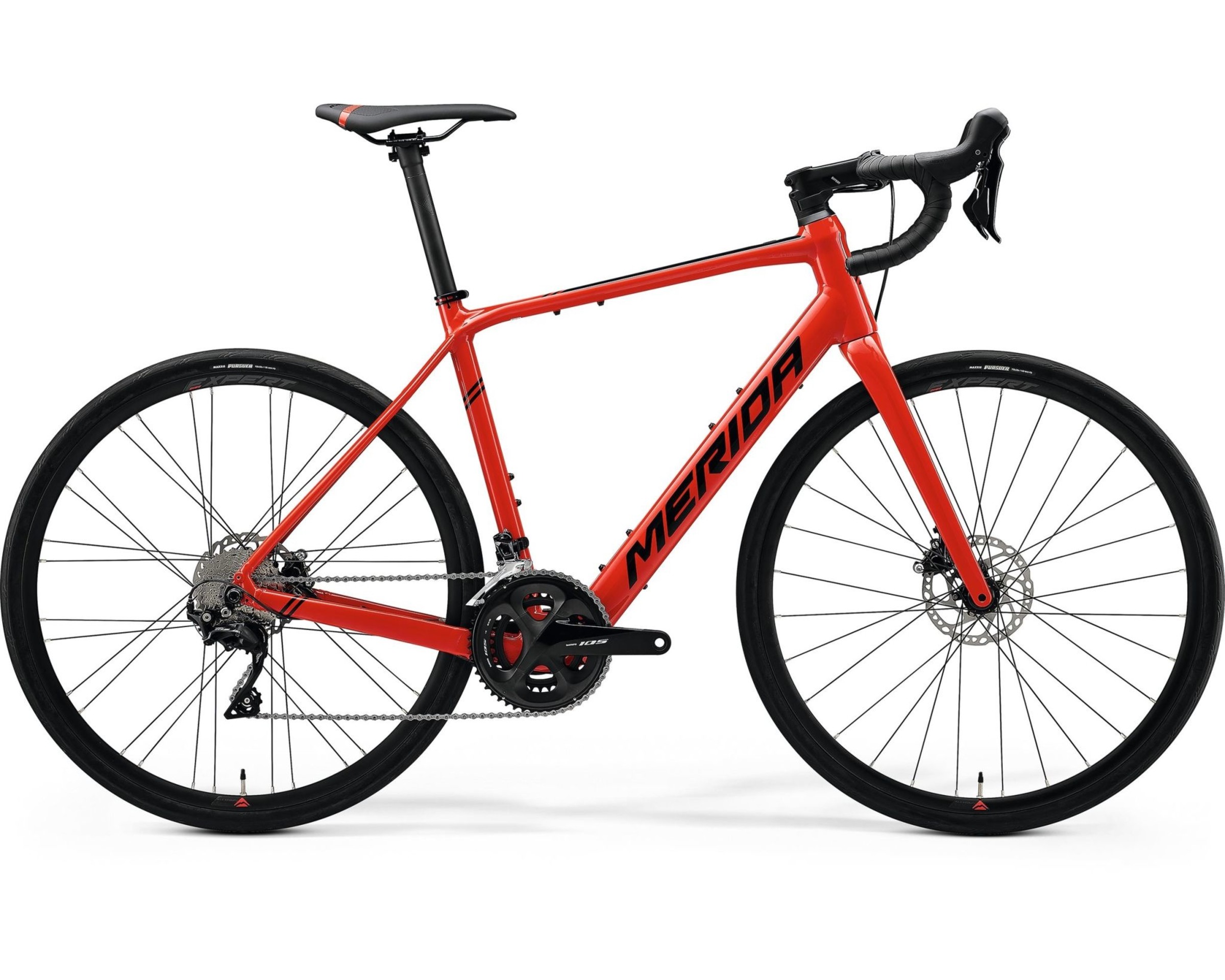

Merida eScultura 400

$4,739.00
Product Code:
Availability: In stock (1)
The Merida eScultura is simply gorgeous. For an e-bike it is incredibly light and you would have to look closely to see it is an e-bike. Perfect for long commutes, or even long coffee rides. Keep up with the bunch, or cruise around for hours on your own. This model is a head turner and worth every cent you spend.

1.5" HEAD TUBE

Higher system weights and increased cornering speeds demand precise steering. The 1 1/2" oversized head tube, combined with a tapered fork, deliver exactly that, giving the rider the confidence to push into the next corner that little bit harder.

GET KITTED UP

The e700C LITE frame comes with multiple fixing points, allowing for fenders, rear rack and a kick stand to be fitted. This makes it very adaptable in case you want to turn your sporty e-road bike into a fast commuter or touring bike. The eSPEEDER 400 EQ comes fully kitted out as standard – ready for the daily commuting duties.

GO WIDE

Depending on your preferences or the terrain you are going to ride on, you can fit 700c wheels with up to 40 mm tyres, even when fenders are fitted. If you prefer 650B wheels, then up to 47 mm wide off-road biased tyres are no problem.

MAHLE MOTOR AND BATTERY

The rear hub MAHLE motor system X35+offers 40 Nm of smooth and drag-free support and is powered by a 250 Wh internal battery. The system is controlled by a one-button iWOC switch which is positioned on the top tube. Different colours of the switch indicate the support as well as the battery level.

WANT TO GO FURTHER?

Should the 250 Wh battery not be enough, or you are intending to go for an extra long outing, then you can fit a 250 Wh range extender. The range extender can be attached to one of the bottle cage fixing points and plugs straight into the system for immediate range extension.

WHAT CABLES?

All cables are run internally, to give the bike a neat look as well as protect them from moisture and dirt. On our e-road bikes, we go one step further by letting all cables enter the frame through a specific headset cup, making the cockpit super clean and clutter-free.

CARBON FORK

All models are equipped with a full carbon tapered fork. Carbon has great vibration absorbing properties in addition to being lightweight, so ride quality is improved. The carbon tapered steerer provides great stiffness to the front end of the bike, delivering precise and confidence-inspiring handling.


FRAME eSCULTURA LITE
FRAME SIZE XS, S, M, L, XL
COLOR RACE RED (BLACK)
FORK MISSION CX CF3
DRIVE UNIT MAHLE X35+ Hub Engine
BATTERY MAHLE B1-C
DERAILLEUR (R) Shimano 105
DERAILLEUR (F) Shimano 105
BRAKE FRONT Shimano 105
BRAKE REAR Shimano 105
CHAINWHEEL Shimano 105
CHAIN KMC e11s
CRANK SIZE 170 mm-XS/S/SM/ML, 175 mm-L/XL
HUB FRONT VP CLK170F
RIM MERIDA Expert SL
FREEWHEEL Shimano 105
TYRE FRONT Maxxis Pursuer
TYRE REAR Maxxis Pursuer
SPOKES Black stainless
HANDLEBAR STEM MERIDA EXPERT IR
HANDLEBAR MERIDA Expert CW
HEADSET VP-MH-P16
SEAT POST MERIDA EXPERT CC
SADDLE MERIDA COMP SL
WEIGHT 13.4 kg
LIGHT FRONT CG-119PG-BLACK(1)
LIGHT REAR CG-404RG-BLK
